Analog Input Guide

Read voltages of internal states through the ADC inputs
Measure controller ground with extended bipolar range

Prerequisites

Complete the quick-start guide for a tutorial on connecting and flashing binaries
Complete the Simulink guide for building a model into a flashable binary
Complete the FreeMASTER guide for viewing MCU variables live. Alternatively, you can use a CAN trace tool to view results if you have successfully read CAN outputs from the MCU
Download the latest Simulink sample software (we will use ADC.slx)

Compile and Run the Software Sample

This software sample uses the ADC to assess the power consumption of the FlexCase via the internal voltage and current measurements.

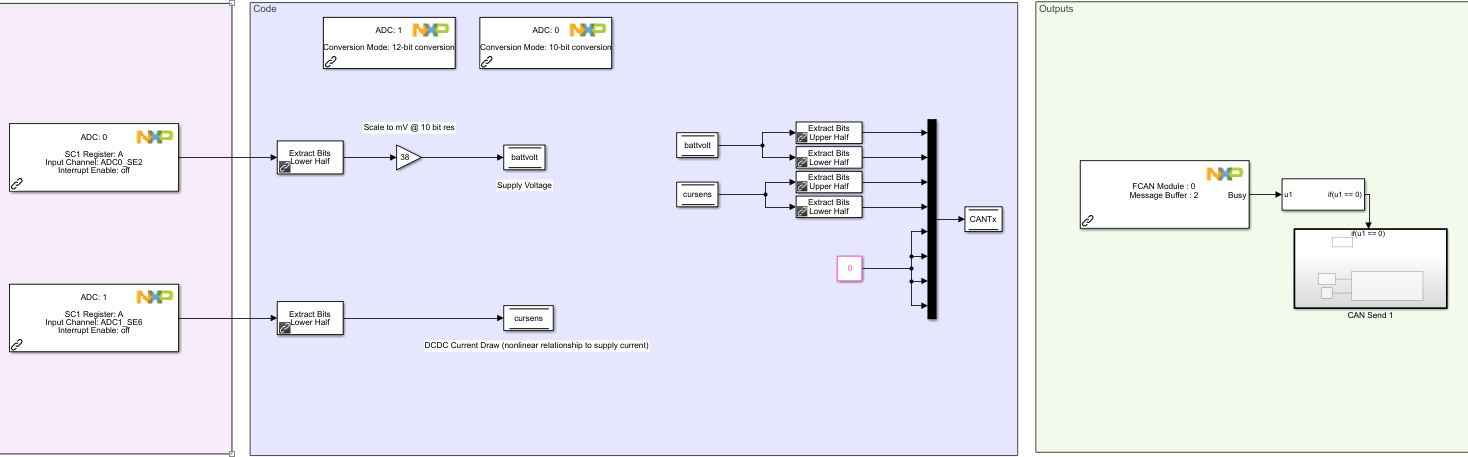

Open ADC.slx
If you are going to use FreeMASTER to view the results, be sure to change the variable storage types to “Volatile” temporarily
Build the model and flash to the MCU

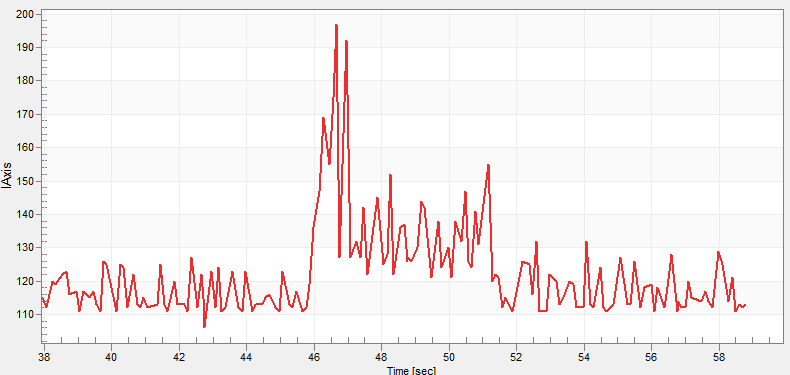

Either through a CAN trace or through FreeMASTER, you should see the battvolt reading the supply voltage (mV), and the cursens reading between 100 and 200, depending on what options your FlexCase is equipped with. The cursens variable reads proportional to the current draw on the DCDC converter. Due to many factors, It has a non-linear relationship to the amperage measured at the external power supply, but can still be used as a heuristic for the power consumption of the FlexCase.

If you have successfully connected to the FlexCase via SSH, you can initiate a disk write test on the MPU to consume more power by running the following command in terminal:

Copy to Clipboard

dd if=/dev/zero of=/tmp/test bs=100M count=1 oflag=dsync

dd if=/dev/zero of=/tmp/test bs=100M count=1 oflag=dsync

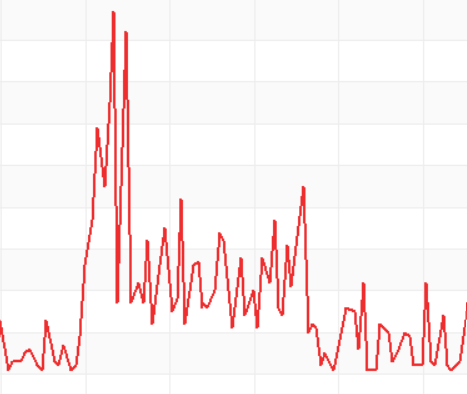

This will write to temporary storage, and should take approximately 5 seconds to complete. You should see the increase power consumption reflected in the cursens variable.

MPU Reads (FlexBench Only)

The analog input is implemented using a SPI-based chip on SPI0, CS1. The single-ended measurement range is 0-36V in 10bit resolution, with the ability for differential modes. Please keep in mind that SPI0 is also used by the MCU, so care must be taken to coordinate the different communication channels. The following python script shows reading of the ADC module channels.

Copy to Clipboard

import spidev
import time
spi = spidev.SpiDev()
spi.open(0,1)
spi.max_speed_hz = 1000000
spi.mode = 0
while True:
    try:
        for i in range(8):
            time.sleep(0.1)
            addrByte = 0x80 + (i << 4)
            data = [0x01,addrByte,0x00] #Read CH0-7 (CH0-7 -> Analog 1-8 on header)
            spi.xfer2(data) #Tx data gets overwritten with Rx data
            adcVal = ((data[1] & 7) << 8 | data[2]) * 0.039
            print(f"ADC{i+1}: {adcVal}") #extract last 10 bits of Rx data and convert to volts
        print("")
    except KeyboardInterrupt:
        spi.close()
        break


import spidev
import time
spi = spidev.SpiDev()
spi.open(0,1)
spi.max_speed_hz = 1000000
spi.mode = 0
while True:
    try:
        for i in range(8):
            time.sleep(0.1)
            addrByte = 0x80 + (i << 4)
            data = [0x01,addrByte,0x00] #Read CH0-7 (CH0-7 -> Analog 1-8 on header)
            spi.xfer2(data) #Tx data gets overwritten with Rx data
            adcVal = ((data[1] & 7) << 8 | data[2]) * 0.039
            print(f"ADC{i+1}: {adcVal}") #extract last 10 bits of Rx data and convert to volts
        print("")
    except KeyboardInterrupt:
        spi.close()
        break

FlexBench Analog Circuit Adjustments

MCU Read Range Adjustment (Advanced – FlexBench Only)

Using the dip switches on the FlexBench, the voltage dividers on MCU ADC 1-5 can be individually adjusted from the default 0-36V range to either a standard 0-5V range or a 4-20mA range. These options are intended for advanced users. Opening the FlexBench can cause damage, so please proceed with caution.

After removing power for the FlexBench and removing the rubber feet on the bottom of the FlexBench will reveal four M2.5 screws. Removing the screws will reveal the circuit board and dip switches. Each of ADC 1-5 have two switches to configure the measurement range. ADC1-4 switches are located near the power barrel jack (bottom-left corner), and the ADC5 switches are in the bottom-right corner. Each dip switch is labeled with the “ON” setting, and has a marking next to the switch with the functions matching the following table:

	10K-Short OFF	10K-Short ON
330-GND OFF	0-36V (default)	0-6V (5V sensors)
330-GND ON	0-15mA (not recommended)	0-20mA (current output sensors)

(Legacy) Negative Voltage Reads

This feature is only available on older models (FlexCase S or FlexBench 1.1) and is only necessary if you plan to measure negative voltages in your project. Incorrectly connected wires can cause permanent damage to the FlexCase.

Each analog input is equipped with a pullup switch that shifts the measurable voltage range, allowing negative voltages to be read. In this example, the ground voltage will be read with the switch disabled and enabled, by adding the provided prototyping wires to your FlexCase wire harness.

You must remove the secondary lock from the back of the C2 connector before you can add terminals. There should be an audible click once the terminal is properly seated, and the secondary lock will only re-insert properly if all terminals are secure (See the official guide for how to add and remove terminals, or see our modification guide).

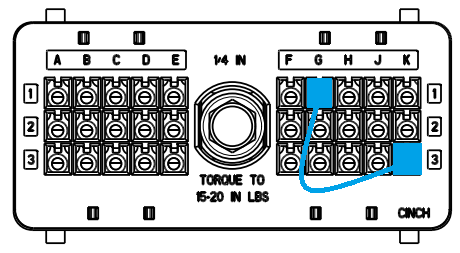

Use the prototyping wires to connect C2-G1 (secondary ground) to C2-K3 (Analog Input 1):

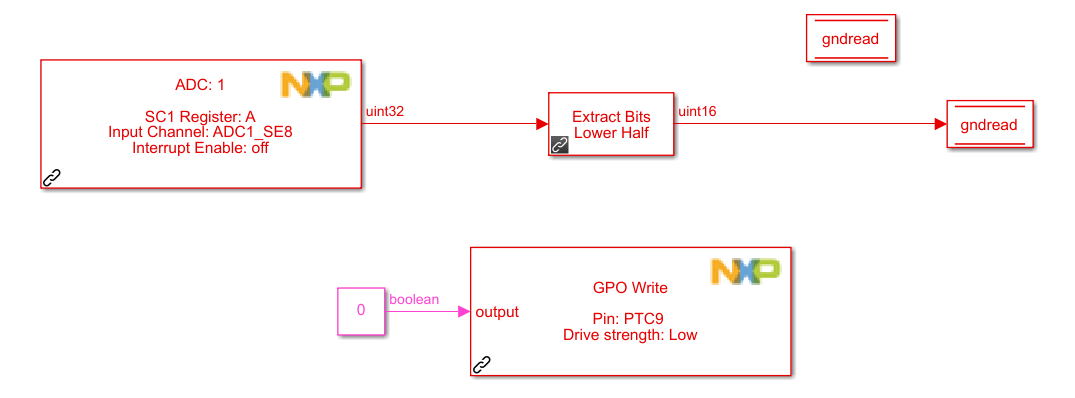

Add the following blocks to the ADC.slx model:

Read on ADC1_SE8 (PTB13)
Extract lower half
Data store and write for a new variable gndread
Write of 0 to the PTC9 pin, which is the pullup switch for Analog input 1

If you are using FreeMASTER to view the variables, ensure the storage class of gndread is volatile. If you are using CAN, you can add the variable to the packing of the CAN message.

Re-build and flash the model to the FlexCase. The analog input should read zero, which corresponds to the ground voltage.

Now, write a 1 to the PTC9 digital output, and re-flash the model. If you are using the provided 12V supply, the analog input should now be reading approximately 500. At 12v, the voltage range is shifted by approximately -5V, so a reading of 0 corresponds to -5V, and a reading of 500 corresponds to a reading of 0V.
